YTJ-100 Bottle Filler Capper for Cosmetic Liquids by HXD

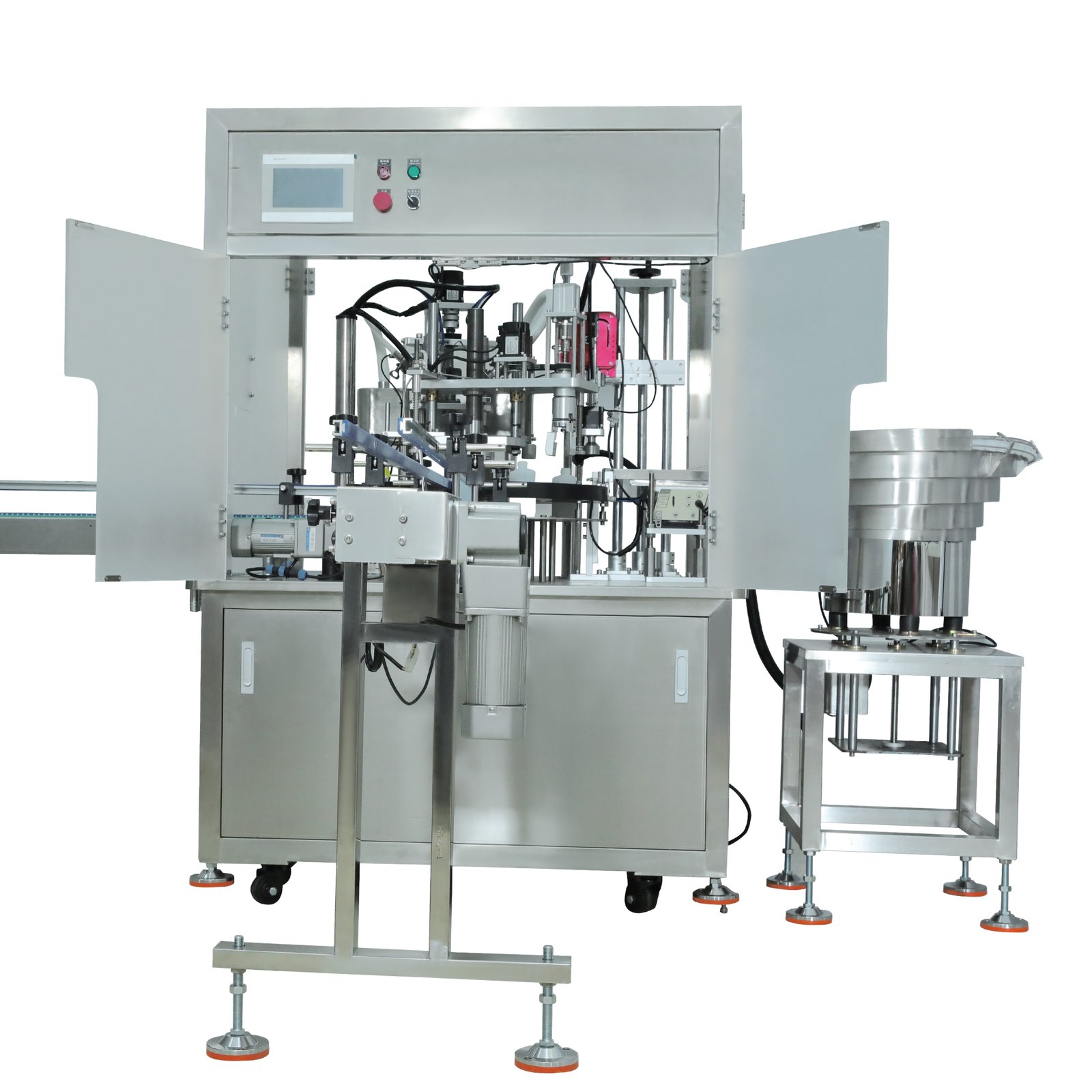

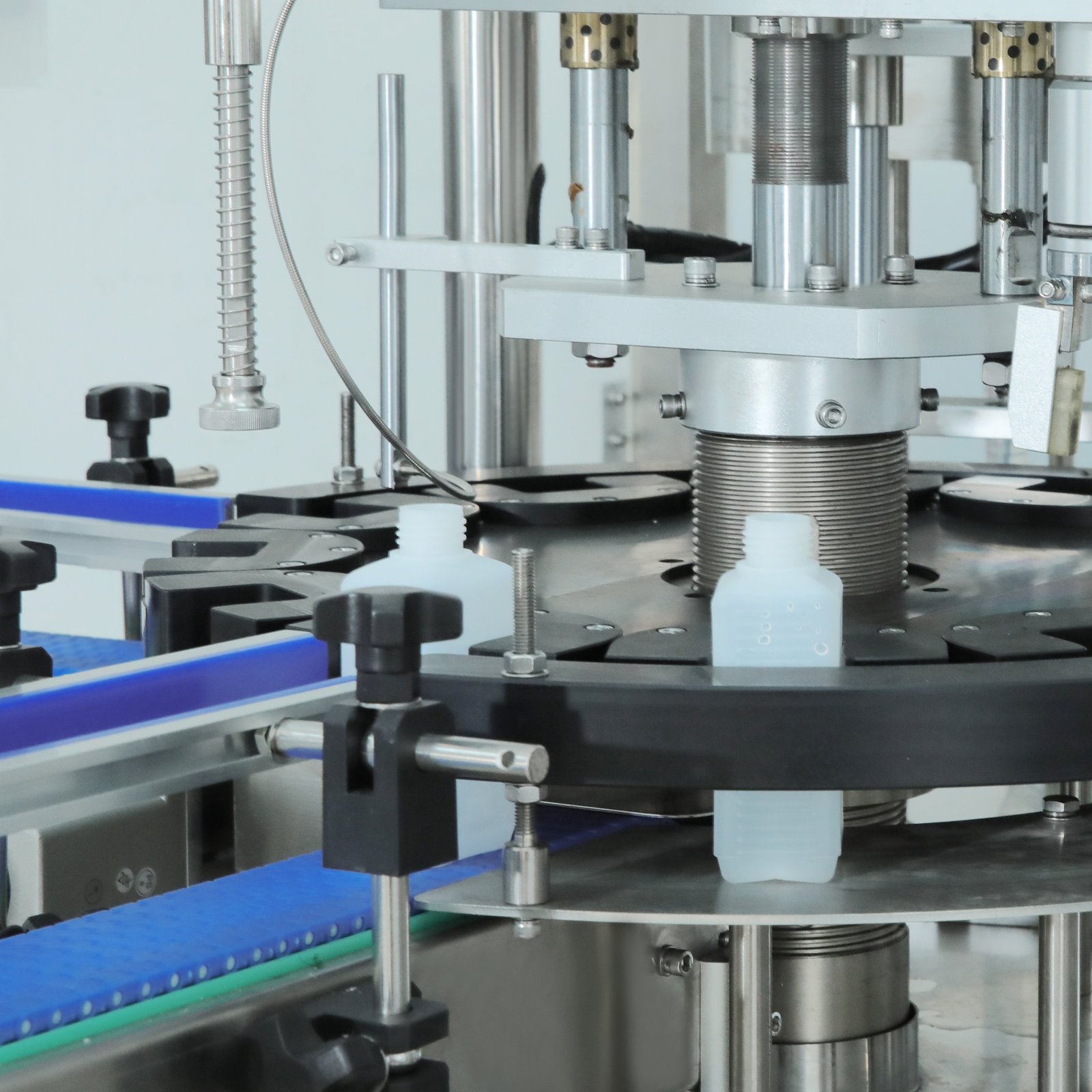

The Rotary Bottle Filling Capping Machine is a monoblock packaging system for liquid dosing and automated cap sealing. Featuring a unique 90-degree conveyor intake and an integrated rotary indexing star-wheel, this rotary bottle filling capping machine ensures the highly stable transit of plastic bottles, glass droppers, and specialized pre-formed spout pouches through continuous production cycles.

Rotary Bottle Filling Capping Machine Features

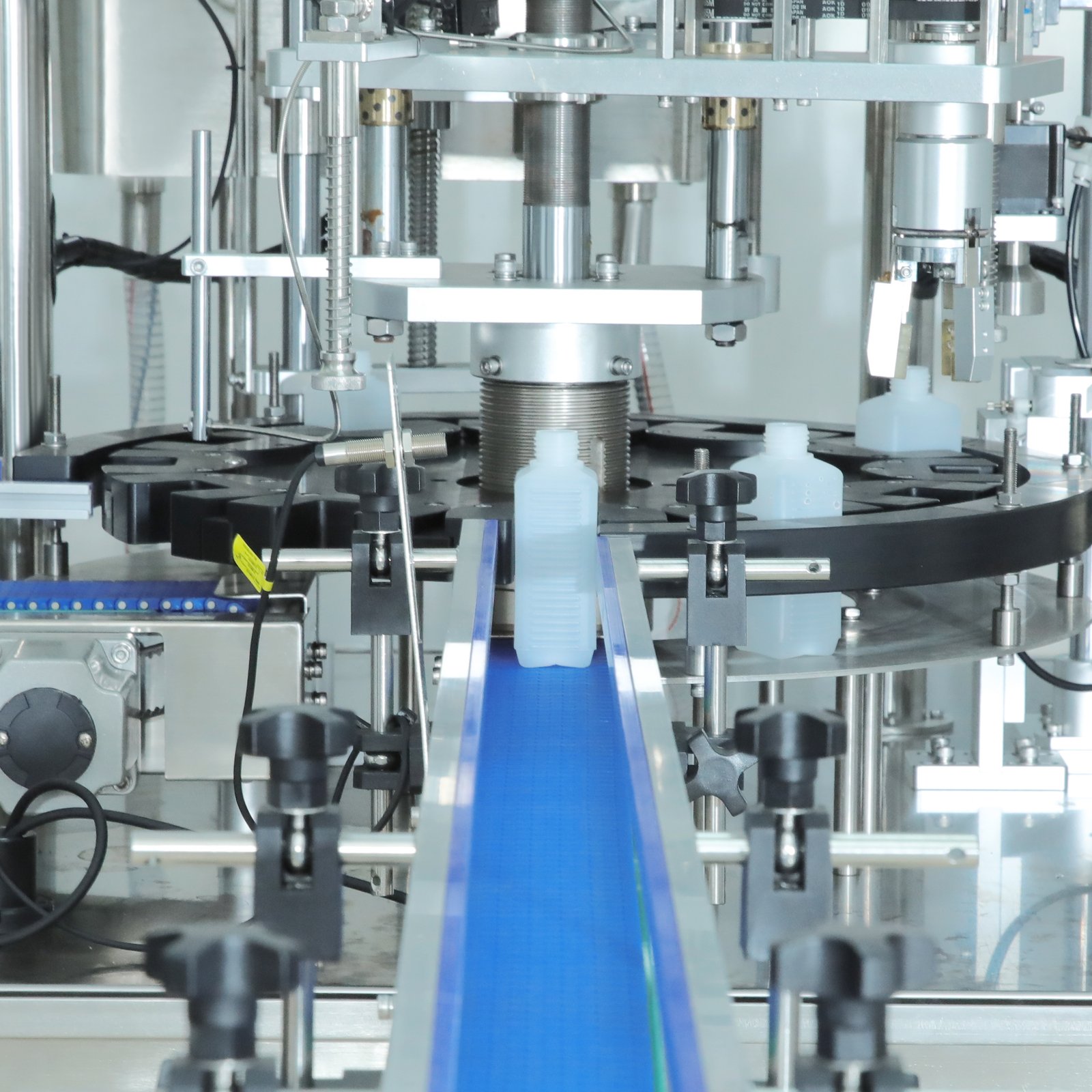

- 90-Degree Monoblock Conveyor Layout: Designed with a space-saving 90-degree product intake that combines bottle feeding, magnetic pump fluid filling, cap sorting, and heavy-duty sealing onto a single monoblock chassis.
- Magnetic Pump Liquid Dosing: The machine uses a magnetic pump system for water-thin to light viscous liquids.
- Automated Vibratory Cap Sorting Bowl: Includes a heavy-duty auxiliary sorting bowl that automatically aligns and feeds caps into the capping chucks, eliminating manual handling and increasing packaging speed.
- Dual Bottle and Spout Pouch Compatibility: The versatile mechanical structure can be custom-tooled with alternative indexing stars to seamlessly accommodate both rigid bottles and flexible stand-up spouted bags.

Technical Parameters (Standard Specifications)

- Machine Model: YTJ-100 90-Degree Rotary Series
- Production Efficiency Speed: 20 - 50 pieces / minute
- Applicable Container Diameter: Φ 10 - 50 mm
- Applicable Container Length/Height: 50 - 280 mm
- Liquid Filling Dosing Range: 2 - 80 ml (Adjustable fluid control)
- Filling Precision Tolerance: ± 1.0% (100ml)
- Power Supply Grid: AC 220V / 50Hz (Total power 2.3 kW)
- Working Air Pressure Range: 0.6 - 0.8 MPa
- Air Consumption Volume: 0.5 m3/min
- Total Net Weight: Approx. 600 kg
- Machine Footprint Dimensions: 2500 × 1400 × 1500 mm (L × W × H)

Extensive Commercial Industry Applications
This automatic monoblock packaging machinery is highly trusted and widely deployed for filling:
- Daily Chemical & Cosmetics: Essential oil glass droppers, liquid soaps, hand sanitizers, hair serums, toners.
- Food & Beverage Packagings: Spout pouch juice, liquid seasonings, sauce bags, drinking syrup bottles, flavorings.
- Agrochemical & Pharmaceutical: Liquid medicine vials, eye drops, specialized chemical reagents, liquid fertilizers.

Technical Guide & Global Engineering Service

Q1: How does the servo-torque mechanism prevent bottle scratching during capping?
The rotary capping station utilizes an active servo or magnetic torque control head. Operators can set the torque threshold via the touchscreen HMI.

Q2: How can I request tooling for my containers?
We provide full technical layout support based on your exact bottle or pouch samples. Liquid-contacting parts are made of SUS304/SUS316 stainless steel. Please feel free to visit our official [Contact Us] page to upload your factory requirements. filling machine
