FL-30 Spout Pouch Filler for Detergent and Juice by HXD
FL-30 spout pouch filler for compatible detergent, juice and jelly. Listed 220 V / 50 Hz, 0.8 kW; confirm fill volume, pouch and nozzle compatibility.
Sample Testing Before Shipment
Complete Line Integration Available
Export Packing and Remote Technical Support
Product Overview

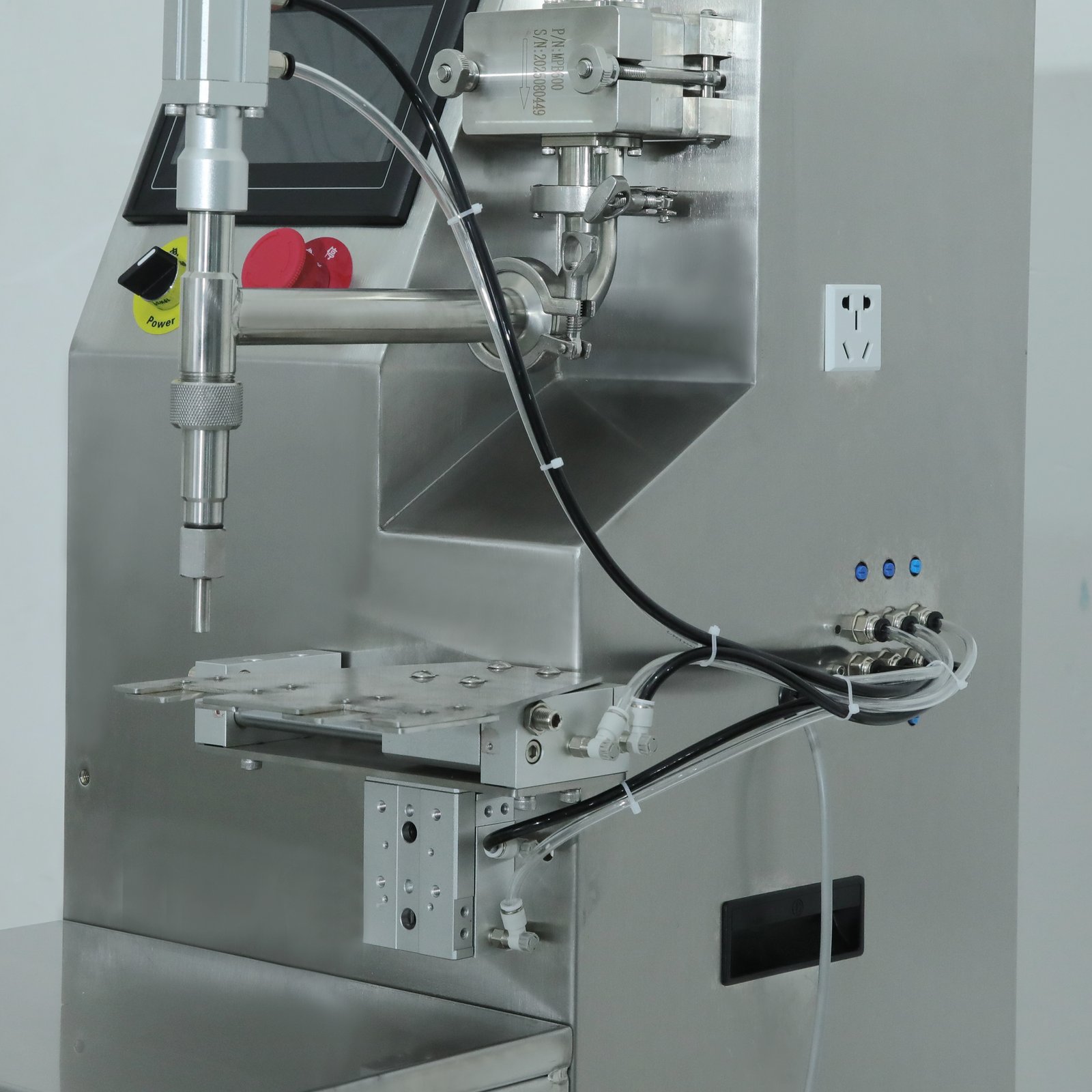

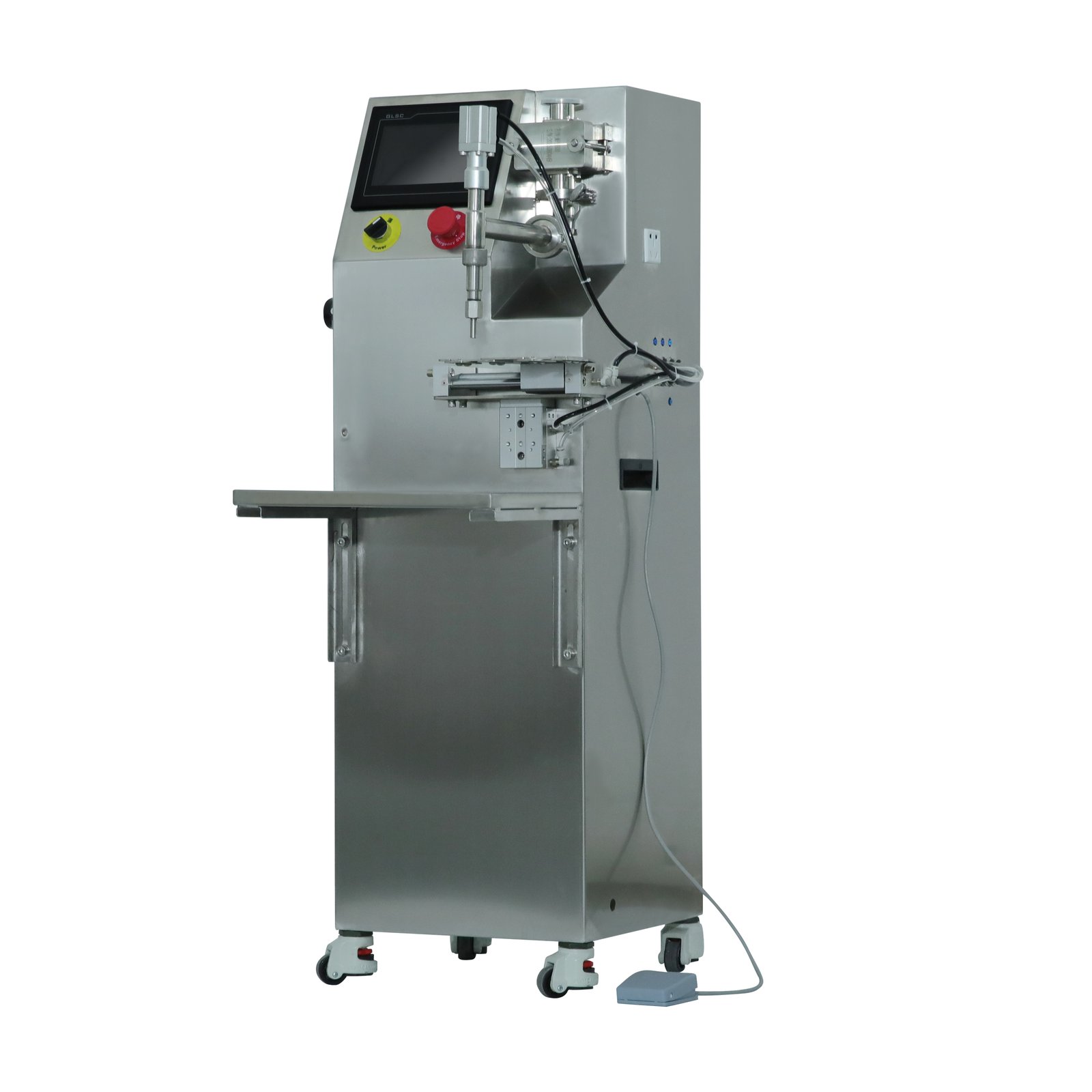

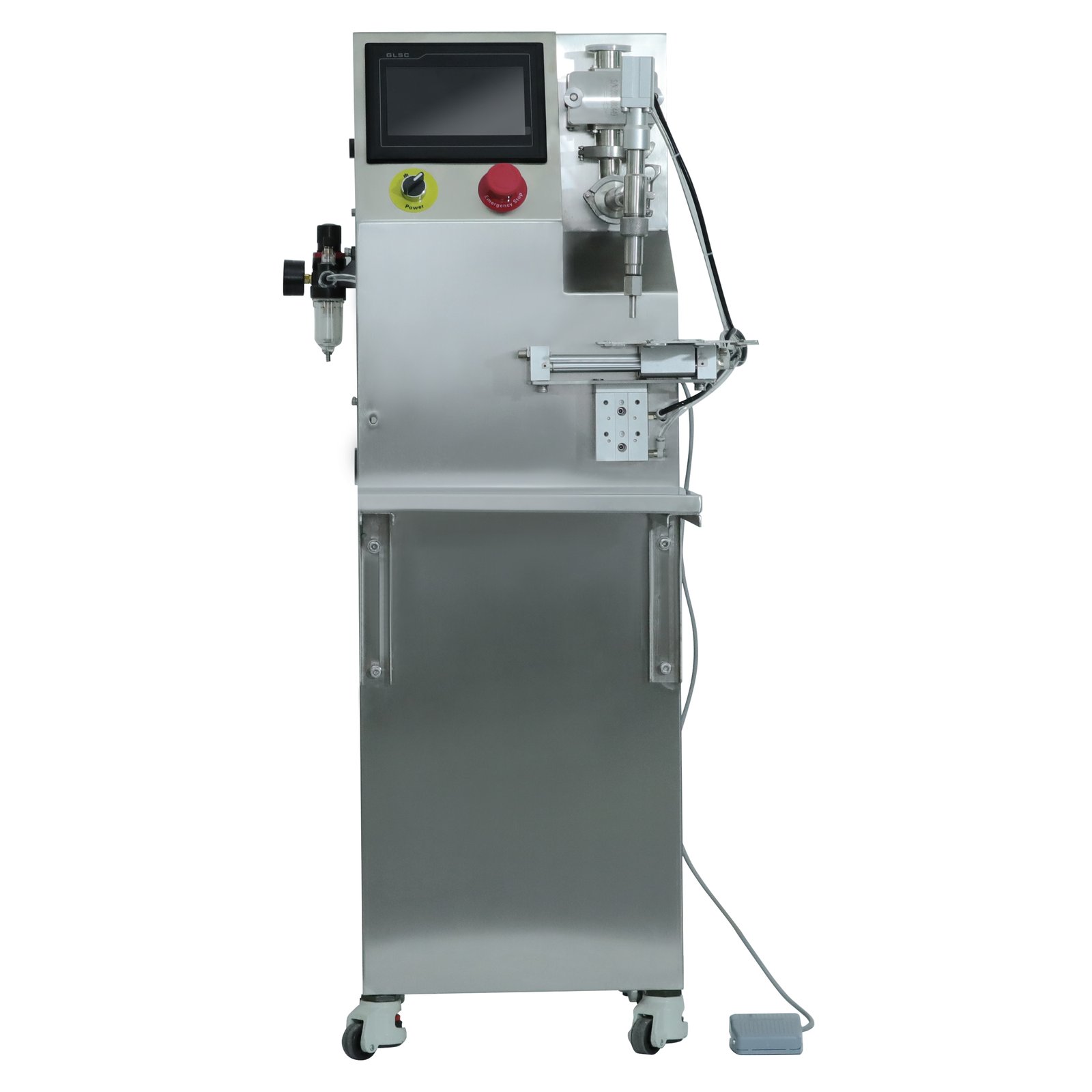

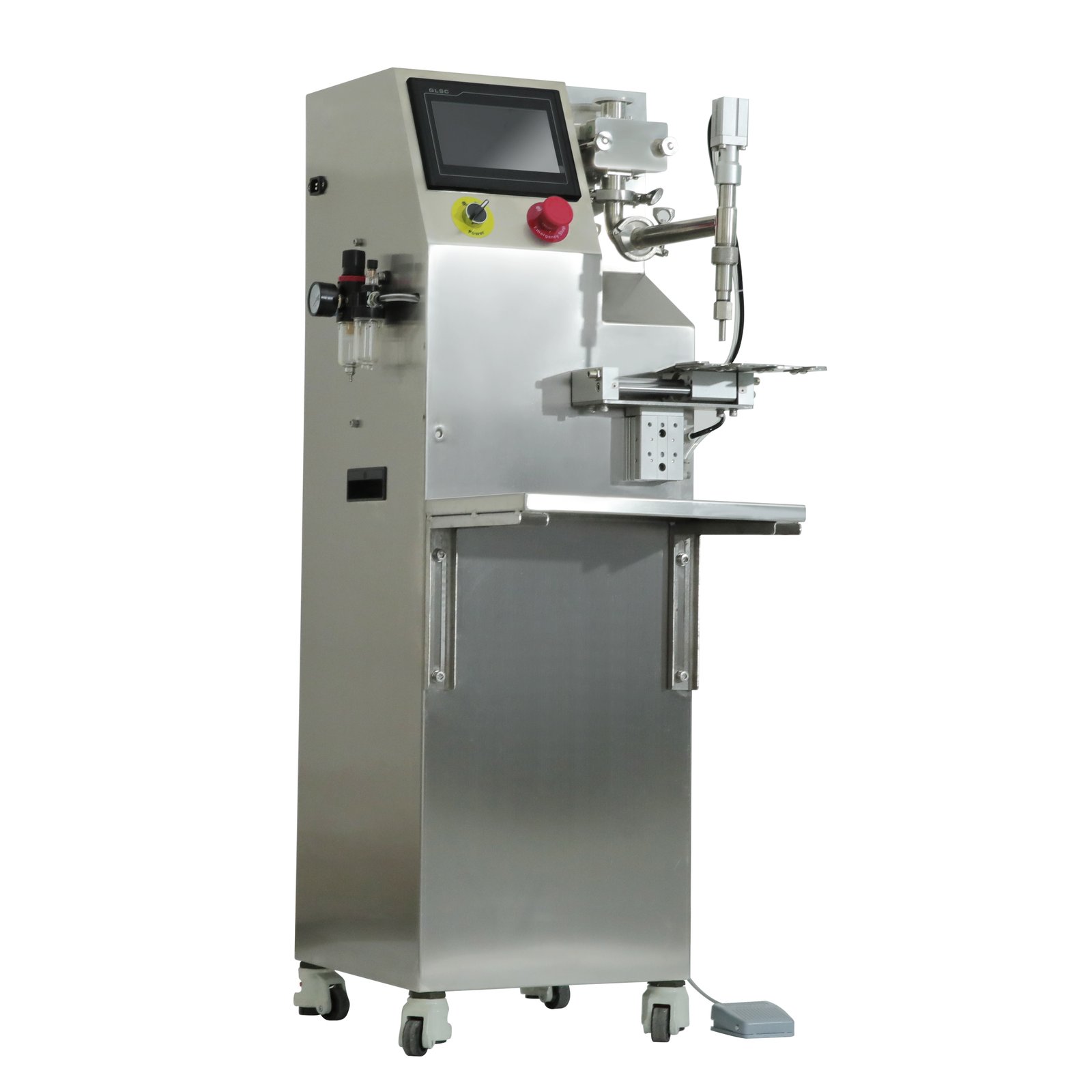

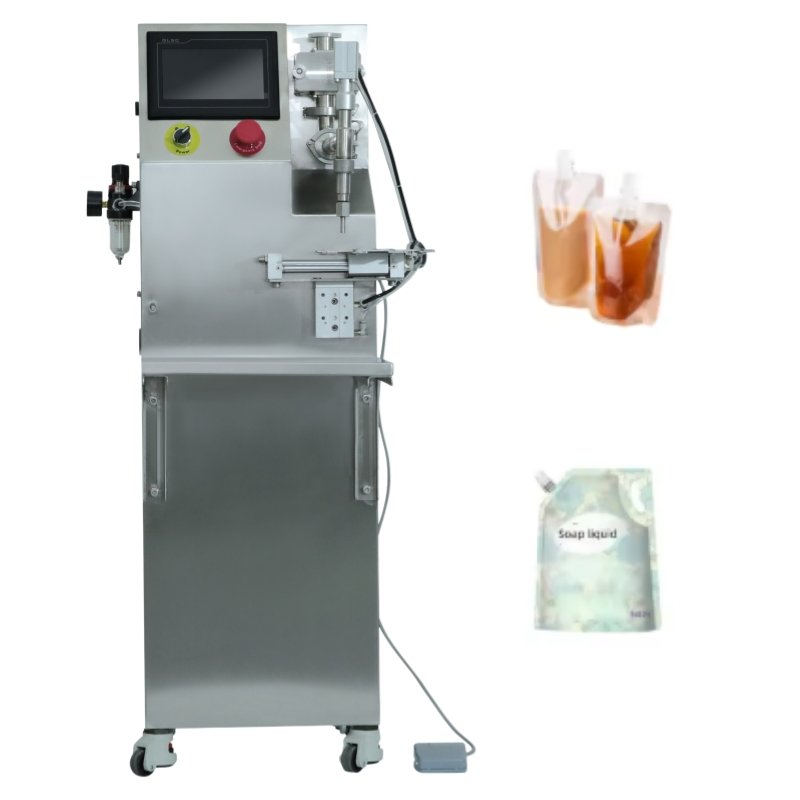

The Spout Pouch Filling Machine is a compact liquid packaging machine for small to medium-sized production lines. This spout pouch filling machine provides dosing and filling for pre-formed stand-up pouches, doypacks, and spouted bags.
Spout Pouch Filling Machine Features
- Dosing Specification: The liquid control valve system has a listed filling tolerance of ±0.5%.
- Compact & Mobile Design: With a floor footprint of only 360 x 360 mm and a weight of 30 kg, this machine saves valuable workshop space and comes with heavy-duty casters for effortless mobility.

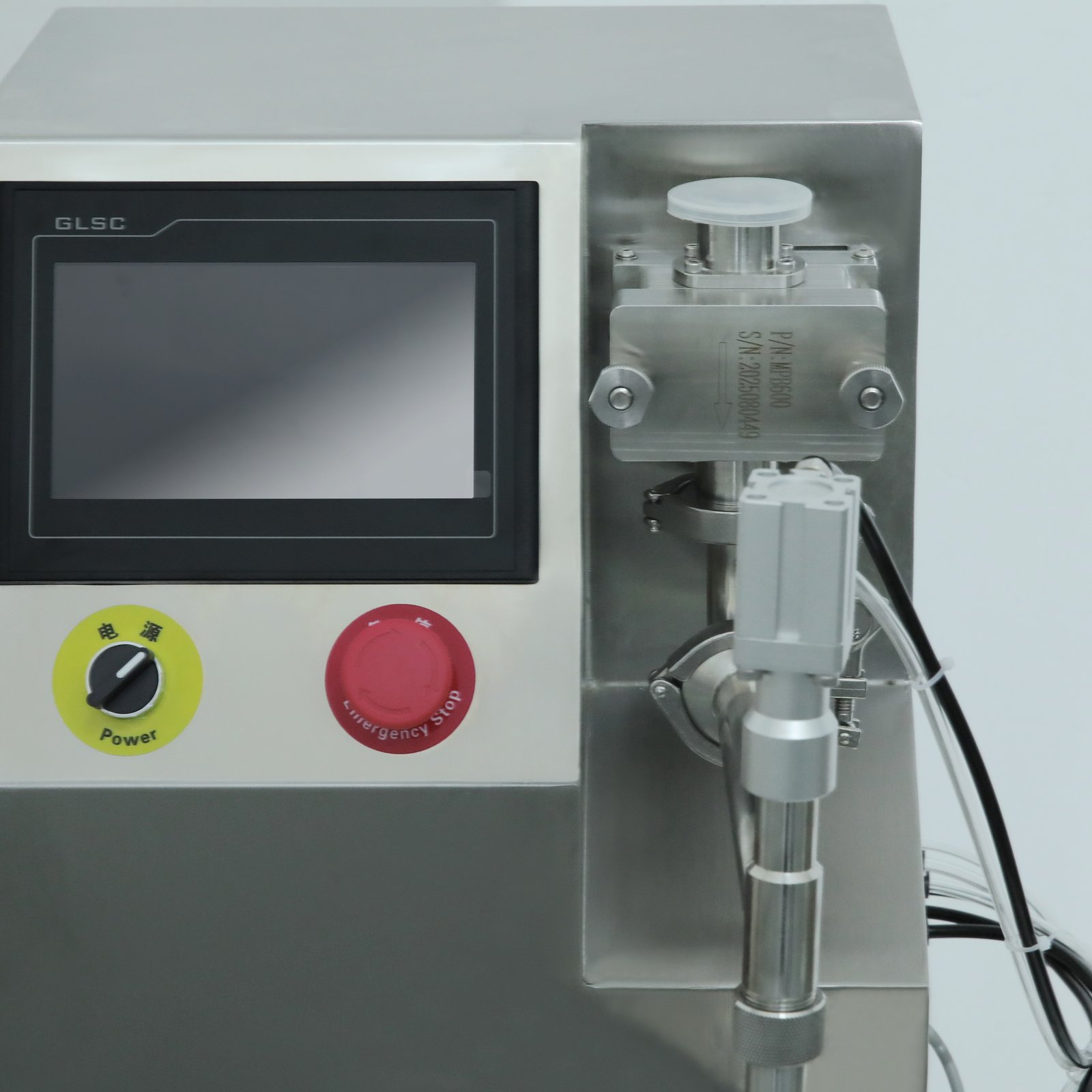

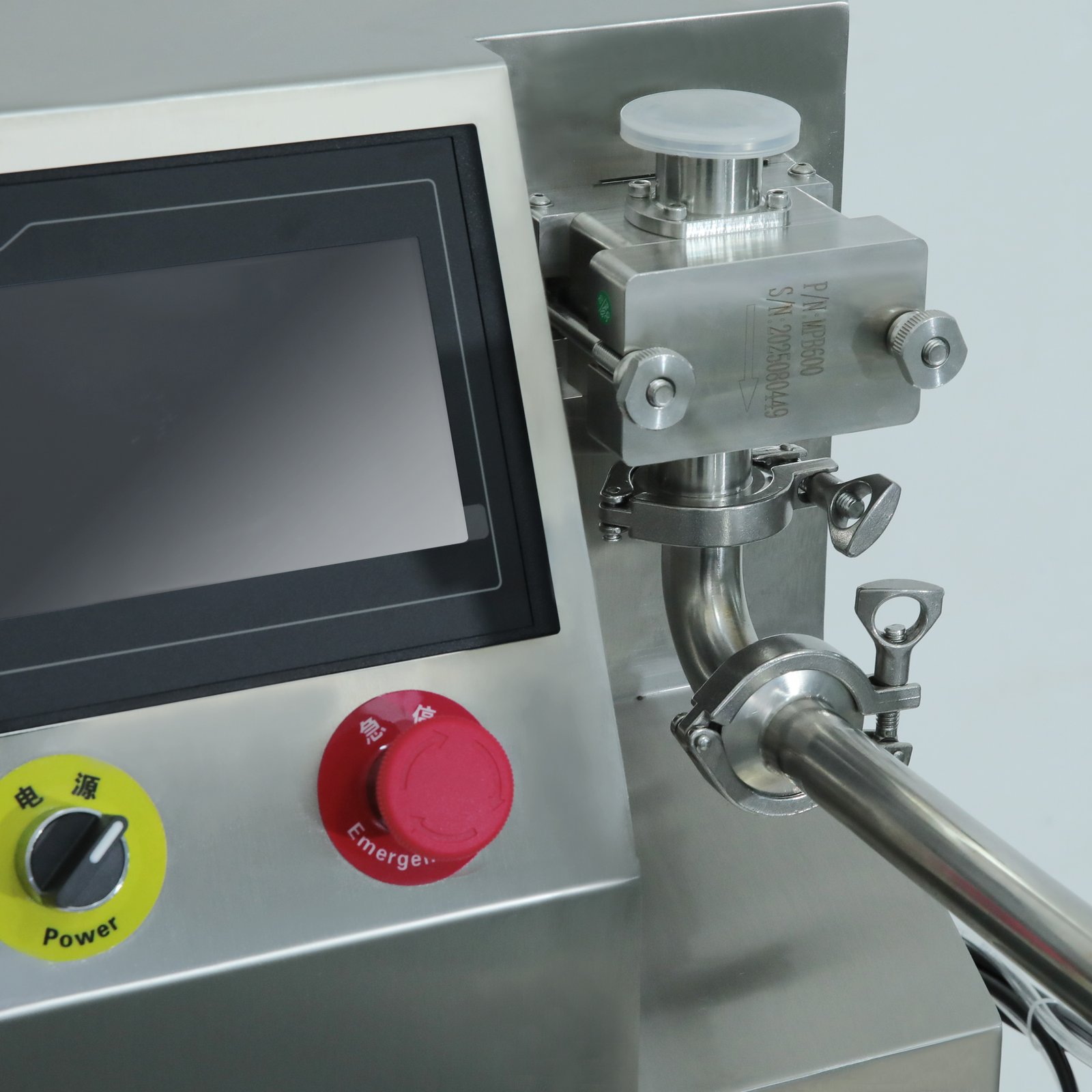

- Touchscreen HMI: The intuitive digital control panel allows operators to adjust filling volumes from 0 to 3000 ml through the control interface.
- Stainless Steel Structure: Built with SUS304 stainless steel structures.

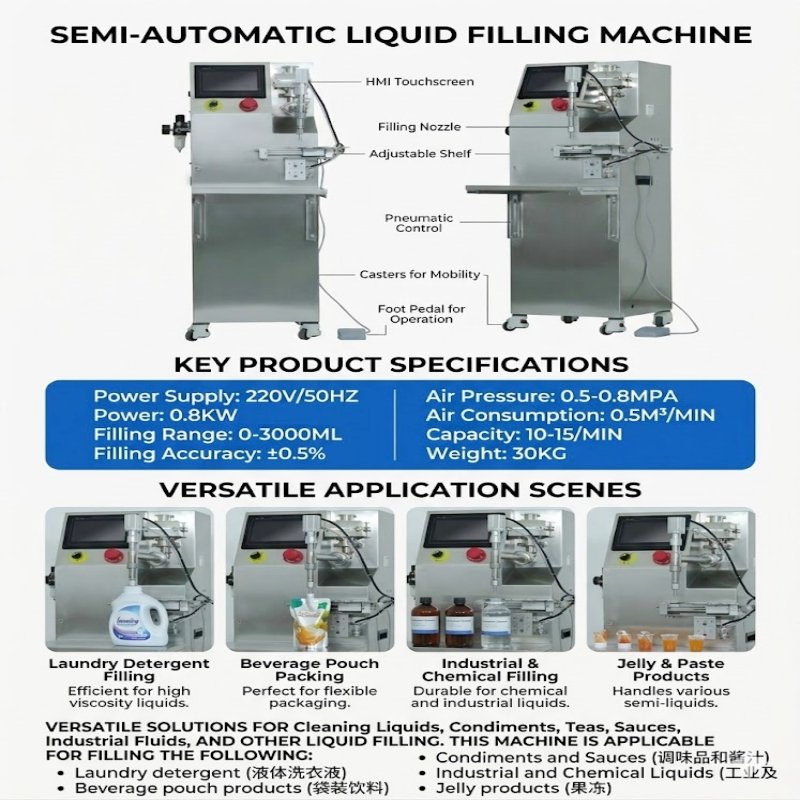

Technical Parameters (Standard Specifications)
Power Supply：AC 220V / 50 Hz (Customizable for 110V/60Hz) |
Rated Power：0.8 kW
Filling Dosing Range： 0 - 3000 ml
Filling Accuracy： ± 0.5%
Working Air Pressure：0.5 - 0.8 MPa
Air Consumption：0.5 m³/min
Production Capacity：0 - 15 pouches / min
Net Weight：30 kg |
Machine Dimensions： 360 × 360 × 1200 mm (L × W × H)
Extensive Industry Applications
This liquid filling equipment is ideally suited for packaging low to high-viscosity fluids including:
Daily Chemical Products: Liquid laundry detergent, hand soap, dishwashing liquids, hair shampoo.
Beverage & Food Industry: Spout pouch juices, jelly bags, drinking water, sauces, edible oils.
Pharmaceutical & Herbal Care: Traditional Chinese medicine liquid (TCM), liquid supplements, extracts.
Technical Guide & Global Export Service
Q1: Can this spout pouch filling machine handle viscous liquids like thick laundry detergent?
The pneumatic filling system and wide-diameter nozzle are described for viscous materials such as gels, liquid detergents, and thick juices.
Q2: How can I order customized nozzles or voltage for the US/EU grid?
We provide full factory customization options. If you require a 110V 60Hz motor or a dual-head layout, please visit our official [Contact Us] page to send your custom engineering requirements.
